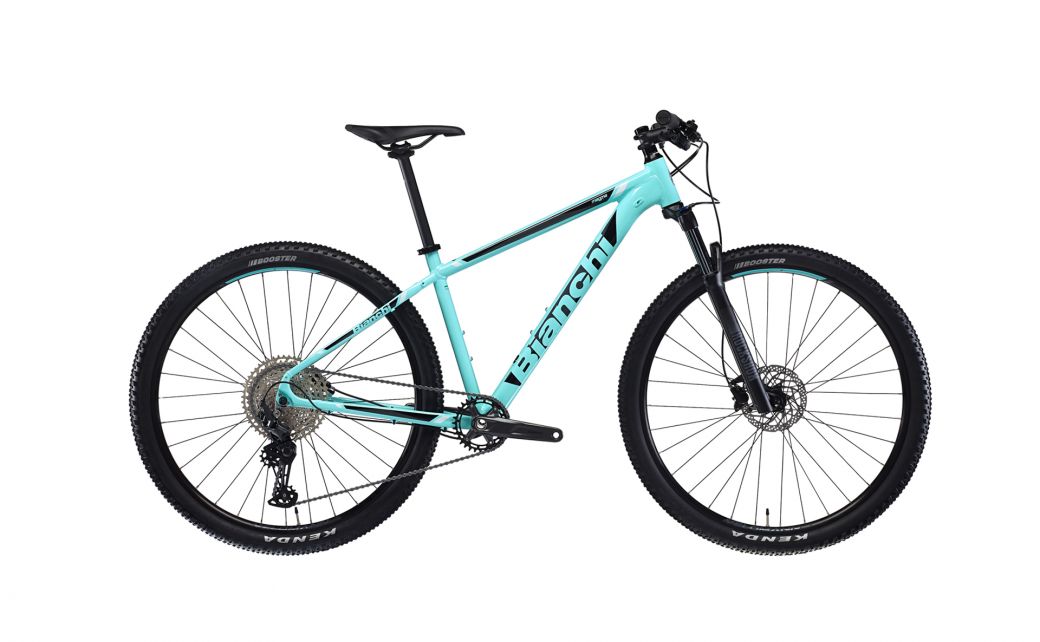

Bianchi Magma 9.0 BOOST

Tech specs

• Frameset

  1. Frame

     Magma 29 alu, 1.1/8" HT, BSA 68mm, seatpost diam. 27,2mm, HDM bottom pull or Side-Swing, PM 160mm, BOOST 9x141mm QR, internal cable routing, sizes 15-17-19-21"

  2. Fork

     Rock Shox Judy TK 29" 100mm w/Remote Lockout,1,1/8" steel HT, alloy crown, coil spring w/pre-load adjust, steel 30mm stanchions, magnesium lowers w/PM 160mm disc mount, 9mm QR

  3. Headset

     Fsa TH888 forged steel cups ID diam.34mm, stack height 12,8+11=23,8mm, w/15mm cap

• Drivetrain

  1. Shifters

     Deore SL-M5100-R 1x11, clamp band

  2. Rear Derailleur

     FH-MT200-B for Center Lock, 32h 141mm OLD BOOST

  3. Front Derailleur

     Formula CL-1420 for Center Lock, 32h 100mm OLD, loose balls, axle length 108mm, w/QR

  4. Crankset

     Shimano FC-M5100-1, 32T, crank length: 170mm-15", 175mm-17/21"

  5. Bottom Bracket

     included in the crankset

  6. Chain

     Kmc X11 EPT finish, 11sp

• Brakes

  1. Brakes

     Shimano BR-MT200, resin pad

  2. Rotor

     Shimano SM-RT10, 160mm front & rear, Center Lock, for resin pad only

• Wheels

  1. Wheels

     VelomannDP2.5, 622x25c, pin joint, 32h, anodized, no eyelet, Presta valve hole

  2. RearHub

     FH-MT200-B for Center Lock, 32h 141mm OLD BOOST

  3. FrontHub

     Formula CL-1420 for Center Lock, 32h 100mm OLD, loose balls, axle length 108mm, w/QR

  4. Tire

     Kenda Booster 29x2.20, DTC compound, 30Tpi, wire, ETRTO 56-622

• Cockpit

  1. Stem

     Velomann 3D forged Alloy 6061, +/-7°, 1.1/8mm, diam. 31.8mm, ext: 80mm-15/17", 90mm-19/21"

  2. Handlebar

     Velomann Flat top DB Alloy 6061-T6, width 720mm, diam. 31,8mm, 9° backsweep

  3. Grips

     T-one T-GP48B, one piece grip, TPR material, 130mm

• Saddle

  1. Seatpost

     Velomann AL2014 shaft w/alloy head, diam. 27.2mm, 0mm seatback, length 350mm

  2. Saddle

     Velomann, steel rails, PVC soft touch cover, 140mm width

Based on component availability, Bianchi reserves the right to make changes on specifications without notice.
