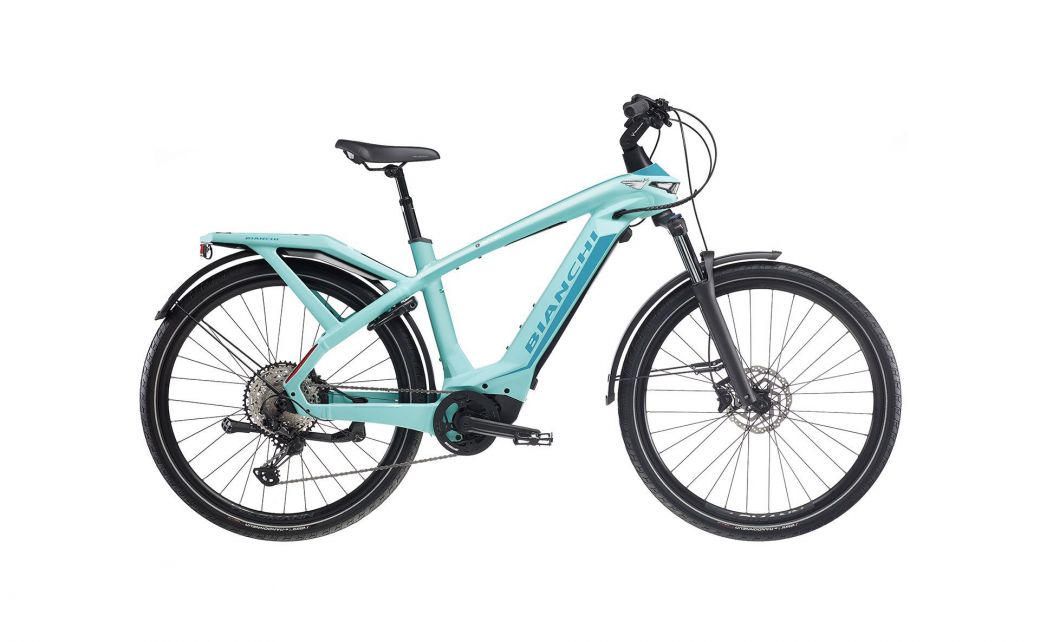

Bianchi e-Omnia T Type

Tech specs

• Motor Unit

  1. Motor

     BOSCH PERFORMANCE LINE CX 250W 85NM

  2. Battery

     BOSCH POWERTUBE 500WH

• Frameset

  1. Frame

     e-Omnia T Type ALU, sizes: MD, LG, XL (43,48,53), 12x148mm Thru-axle, Ready to fix the chainguard, Post mount 160 disc brake type, Ready to fix rear kyckstand, custom rearcarrier integrated in the frame design, BatteryWall Darfon OmniaX/T/FX, Set dropout

  2. Fork

     Suntour XCM34-Boost NLO DS 15AH2-110 29" travel 120mm

  3. Headset

     Fsa NO.55R/558 1.5"

• Drivetrain

  1. Shifters

     Shimano Deore SL-M4100-R, 10sp

  2. Rear Derailleur

     Shimano RD-M5120, DEORE, SGS 10sp, SHADOW DESIGN

  3. Crankset

     FSA Die cast alloy, crank lenght 170mm ISIS black, MegaTooth 38T

  4. Bottom Bracket

     Included w/motor unit

  5. Chain

     Kmc e10S NPBK Anti-Rust 1/2" x 11/128" EPT

  6. Cassette

     Shimano DEORE CS-M4100-10, 11-42T

• Brakes

  1. Brakes

     Shimano BR-MT200, resin pad

  2. Rotor

     Shimano SM-RT10, diam. 180mm

• Wheels

  1. Wheels

     VELOMANN EBIKE MAXX 29" - 622X25C

  2. RearHub

     SHIMANO FH-MT400-B CENTER LOCK, BOOST 12X148MM

  3. FrontHub

     SHIMANO HB-MT400-B CENTER LOCK, 15X110MM TA

  4. Tire

     WTB Slick 2.2 29" 54/54 27tpi

• Cockpit

  1. Stem

     VELOMANN HI-RISE STEM, EXT: 90MM-43/48CM, 110MM-53CM

  2. Handlebar

     VELOMANN Rise, width 740mm, diam. 31,8mm, 9° backsweep, 15mm rise

  3. Grips

     HERRMANS LUNA LOCK

• Saddle

  1. Seatpost

     Velomann, lenght 350mm-15/17'' and 400mm-19/21'', diam.31,6mm, 0mm seatback, AL2014 shaft

  2. Saddle

     Velomann 8016HR0, size 270x162mm

• Accessories

  1. Mudguards

     BIANCHI CUSTOM MUDGUARDS

  2. Kickstand

     VELOMANN R78 KING EVO REAR MAX 35KG

  3. RearCarrier

     custom rear carrier integrated into the frame design

  4. FrontLight

     INTEGRATED CUSTOM FRONT AND SIDE LIGHT MADE W/SPANNINGA

  5. RearLight

     Spanninga integrated rear lights

Based on component availability, Bianchi reserves the right to make changes on specifications without notice.
