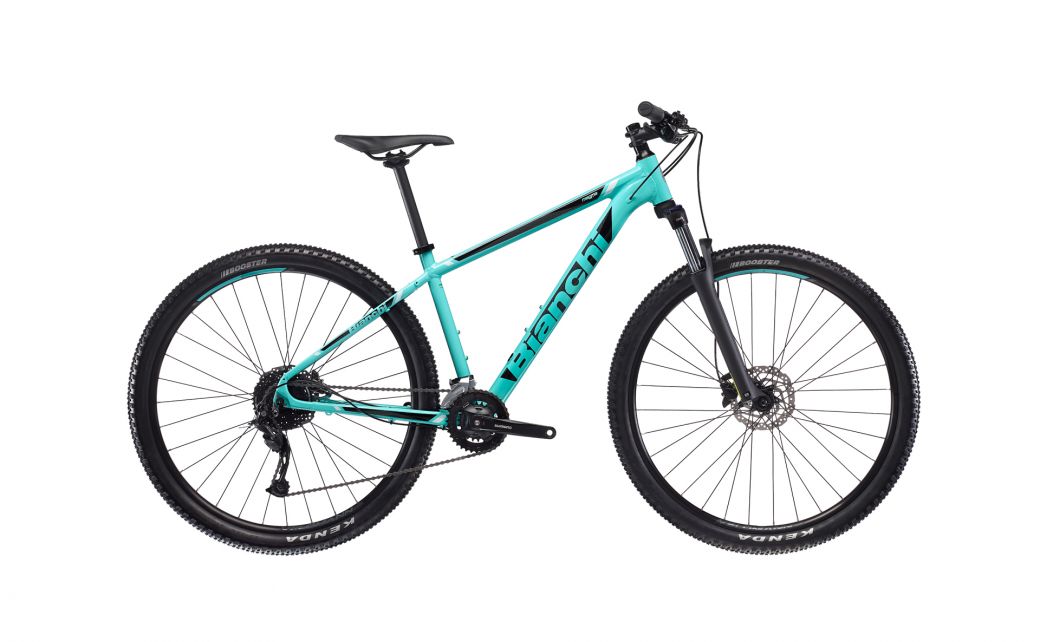

Bianchi Magma 9.2

Tech specs

• Frameset

  1. Frame

     Magma 29" alu, 1,1/8" HT, BSA 68mm, seatpost diam. 27,2mm, low clamp FD diam. 31,8mm bottom pull or Side-Swing, PM 160mm, dropouts 9x135mm QR, internal cable routing, sizes 15-17-19-21"

  2. Fork

     SR Suntour XCM HLO DS 29" 100mm

  3. Headset

     Fsa TH888

• Drivetrain

  1. Shifters

     Shimano Alivio SL-M3100 2x9sp

  2. Rear Derailleur

     Shimano Alivio RDM3100 SGS 9sp

  3. Front Derailleur

     Shimano FD-M2020-TS low clamp diam. 31,8mm, dual pull, 64/69°, for 36T w/14T capacity, CL 48.8/51.8mm

  4. Crankset

     Shimano FC-MT101-2, 36/22T, crank length: 170mm-15/17", 175mm-19/21"

  5. Bottom Bracket

     Shimano BB-UN101

  6. Chain

     Kmc HV900 9sp

• Brakes

  1. Brakes

     Shimano BR-MT200

  2. Rotor

     Shimano SM-RT10, 160mm front & rear, Center Lock

• Wheels

  1. Wheels

     VelomannDP2.5, 622x25c

  2. RearHub

     Formula CL-1422

  3. FrontHub

     Formula CL-1420

  4. Tire

     Kenda Booster 29x2.20

• Cockpit

  1. Stem

     Velomann ST92A +/-7°, 1.1/8", diam.31.8mm, ext: 80mm-15/17" and 90mm-19/21", 3D forged alloy 6061

  2. Handlebar

     Velomann rise MTB479A, width 720mm, diam.31,8mm, rise 15mm, backsweep 9°, PG Alloy 6061 sandblasted anodized

  3. Grips

     T-one T-GP48B

• Saddle

  1. Seatpost

     Velomann AL2014 shaft w/alloy head, diam. 27.2mm, 0mm seatback, length 350mm

  2. Saddle

     Velomann, steel rails, PVC soft touch cover, 140mm width

• Accessories

  1. Pedals

     included

Based on component availability, Bianchi reserves the right to make changes on specifications without notice.
