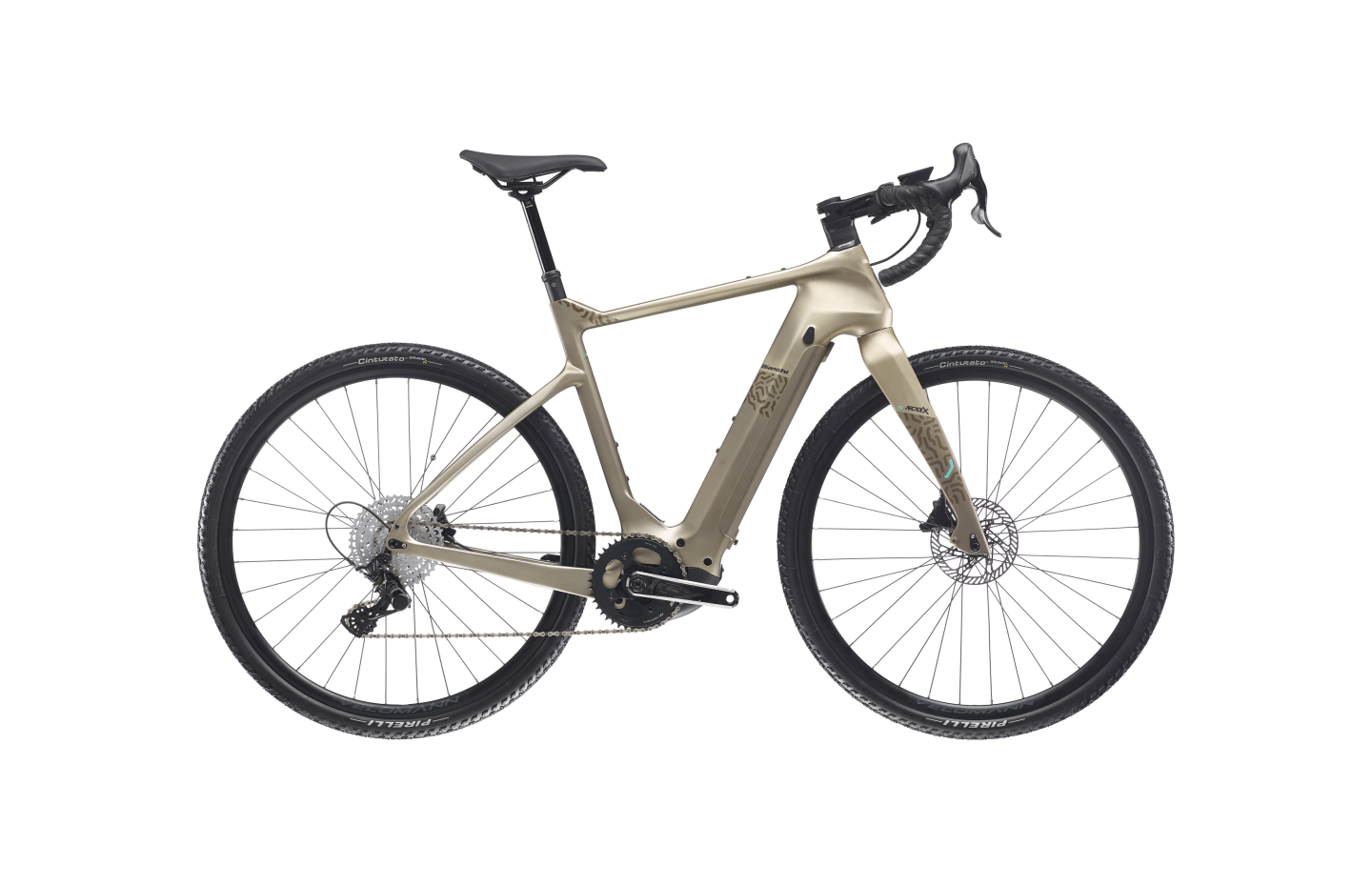

Bianchi E-Arcadex

Tech specs

• Motor Unit

  1. Motor

     Bosch Performance Line CX motor unit

  2. Battery

     Bosch Powertube 500Wh integrated battery

• Frameset

  1. Fork

     Full Carbon 1.5" flat mount, disc brake, thru axle 12x100mm

  2. Headset

     FSA SMR HS with 1-1/8” custom top cone Bianchi, H2475 Internal Headset, Integrated Alloy custom top cup 1.1/8"", 1.5"", 36°/45° ACB

• Drivetrain

  1. Shifters

     Campagnolo EP EKAR 1x13 - Ant. adapter + screws - Post. adapter + screws - Fixing screws 29mm

  2. Rear Derailleur

     Campagnolo RD EKAR 1x13

  3. Crankset

     FSA E-bike KFX Crankset - ISIS / 165mm - 170mm - 175mm / Hollow Alloy / SB black FSA Bosch Gen4 STD Alloy Spider

  4. Bottom Bracket

     Included in the Drive unit

  5. Chain

     Campagnolo EKAR 13v C-Link 117 links w/quick-link

• Brakes

  1. Brakes

     included in the shifter

  2. BrakeLevers

     included

  3. Rotor

     Campagnolo AFS 160mm, steel spider

• Wheels

  1. RearHub

     TA 12x142, center lock, J-bend, N3W

  2. FrontHub

     TA 12x100, center lock, J-bend

  3. Tire

     Pirelli Cinturato GRAVEL Adventure M, 40-622, black, 60tpi, TLR, Foldable

• Cockpit

  1. Stem

     Velomann, Alloy 6061 , 1 1/4", raise 0°, Oversize, plastic adaptor for hose cover 1 1/4", Ext: 80mm-XS -S, 100mm-M, 120mm-L/XL

  2. Handlebar

     Velomann Aluminum 6061, reach 70mm, flare angle 16°, drop cc 120, Size: 400mm-XS/S, 420mm-M/L, 440mm-XL

  3. Grips

     La Spirale Ribbon cork + new plug carbon look with Bianchi logo color: Black

• Saddle

  1. Seatpost

     Alpha3 Series, 40+80, 31,6 mm, Anodized black, Gravel remote, 1800 mm Barrel + screw

  2. Saddle

     Velomann, rail steel black, open, cover PU, lenght/wide 250x148mm color: black

Based on component availability, Bianchi reserves the right to make changes on specifications without notice.
